Detail Information

Grade:	300 Series	Special Use:	High-strength Steel Plate
Length:	Customized	Accuracy:	±0.1mm
Size:	As Requested	Hs Code:	7220203000
Special Request:	Can Be Customized	Dimension:	Accept Custom
Thinckness:	0.3mm-12m	Price Terms:	Fob CFR CIF
Product Keywords:	Metal Hose Clamps	Price Term:	FOB, CFR, CIF, EXW, Etc.
Origin:	Shandong, China	Finish:	Cold Rolled/Hot Rolled
Technical Standard:	JIS,AISI, ASTM,GB,DIN,EN
Highlight:	Ultra Thin 316L SS Coil , Stainless Steel 316L Coil 0.1mm , Ultra Thin Stainless Steel 316L Coil

Product Description

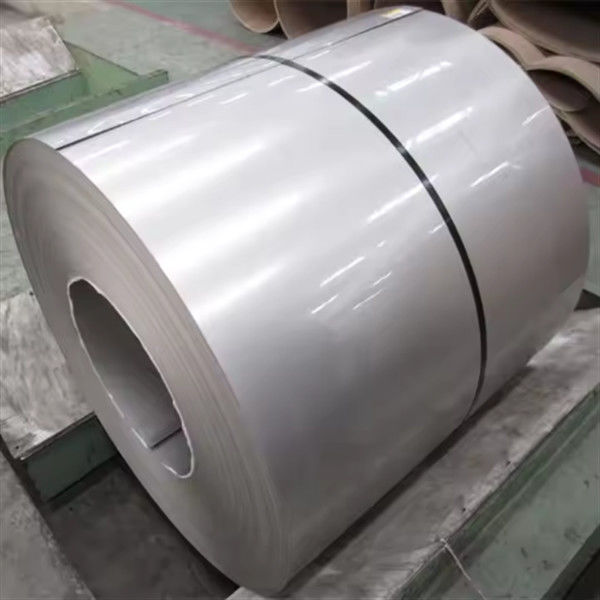

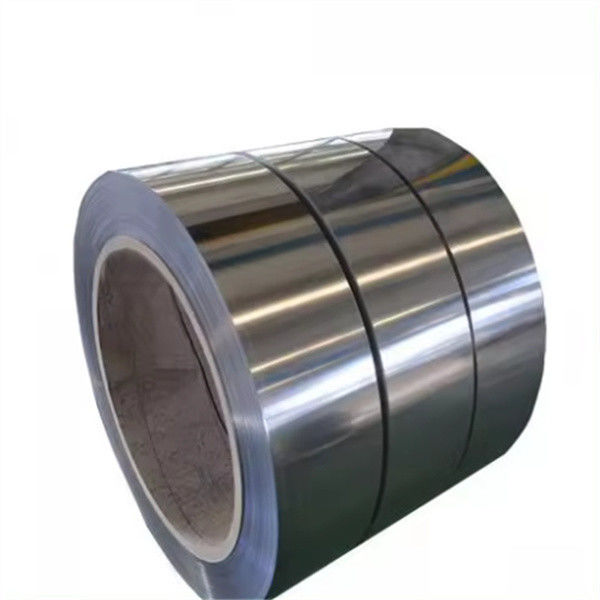

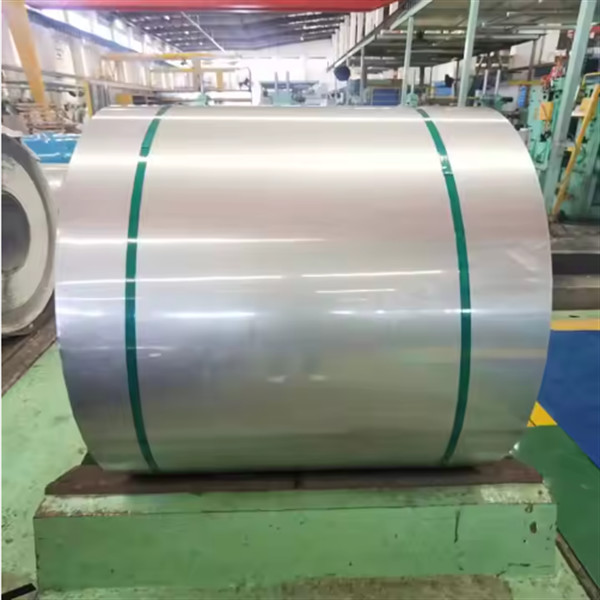

Ultra-Thin 0.1mm Stainless Steel Coil, Medical Grade 316L, ISO 13485 Certified

Our Ultra-Thin 0.1mm Medical Grade 316L Stainless Steel Coil is precision-engineered for the healthcare and electronics industries, where micron-level thickness, biocompatibility, and absolute material purity are non-negotiable. Certified under ISO 13485 (Medical Devices Quality Management), this coil meets the stringent requirements for surgical instruments, implantable devices, and diagnostic equipment. The 316L alloy (low carbon variant) ensures exceptional resistance to bodily fluids, sterilization processes, and corrosive cleaning agents. With a flawless surface finish (Ra ≤0.05μm), it eliminates bacterial adhesion risks while enabling high-precision stamping, laser cutting, and micro-forming for cutting-edge medical technologies.

2. Detailed Specifications

Parameter	Details
Material	AISI 316L (UNS S31603)
Element Composition	Cr: 16-18%, Ni: 10-14%, Mo: 2-3%, C: ≤0.03%, Mn: ≤2%, Si: ≤1%, Fe: Balance
Thickness	0.1mm (±0.002mm tolerance)
Width	10mm – 500mm (customizable)
Surface Finish	Mirror Polish (Ra ≤0.05μm) or Electropolished
Tensile Strength	485 MPa (min)
Yield Strength	170 MPa (min)
Elongation	40% (min)
Certifications	ISO 13485, ASTM A240, ISO 9001, REACH, FDA 21 CFR 177.1520 (food/medical)
Applications	Micro-surgical tools, implantable sensors, flexible electronics, lab-on-a-chip devices

3. Advantages of Importing Our Ultra-Thin 316L Coil

Core Benefits

Medical-Grade Precision: Cold-rolled to ±0.002mm tolerance using nano-level rolling mills for flawless consistency.
Biocompatibility: Passes ISO 10993-5 cytotoxicity testing, ensuring safety for long-term human contact.
Fast Turnaround: 7-10 day lead time for custom widths, backed by 24/7 emergency order support.
Cost Savings: 25% lower cost than U.S./EU suppliers with identical ISO 13485 certification.

Unique Selling Points

Zero Contamination Guarantee: Produced in ISO Class 7 cleanrooms with full material traceability.
Advanced Surface Treatments: Electropolishing or PVD coatings available for enhanced corrosion resistance.
Custom Packaging: Individually wrapped in antistatic, nitrogen-filled pouches to prevent oxidation.
Global Compliance: Meets FDA (food/medical contact) and EU MDR (Medical Device Regulation) standards.

4. Critical Medical & High-Tech Applications

Industry	Use Cases
Medical Devices	Catheter guidewires, neurostimulator components, endoscope coils, pacemaker casings.
Diagnostic Equipment	Lab-on-a-chip microfluidics, MRI machine shims, biosensor electrodes.
Flexible Electronics	Wearable health monitors, foldable device hinges, flexible circuit boards.
Pharmaceutical	Drug delivery patches, inhaler components, sterile packaging foils.
Research	Microelectromechanical systems (MEMS), nanotech prototypes, quantum computing parts.

FAQ:

Q: Are you a manufacturer or trading company?

A: We are a factory with 12 years of sales experience.

Q: Where is your factory located?

A: Our factory is located in Wuxi City, Jiangsu Province, China.

Q: How can I get samples?

A: There are always pre-production samples before mass production; there is always final inspection before shipment;

Q: What payment methods do you offer?

A: Accepted delivery terms: FOB, CFR, CIF, EXW, Express; Accepted payment currencies: USD, RMB; Accepted payment methods: T/T, L/C,

Credit Card, Western Union, Cash;

Q: What are your after-sales service details?

A: 1) We provide necessary technical support to all customers, such as material properties and heat treatment data suggestions.

2) We provide suitable steel technical parameters for customers in Germany, the United States, Japan, the United Kingdom and other countries.

Tag:

Place of Origin:	CHINA
Brand Name:	TISCO，Baosteel，WISCO，CHINA STEEL UNION
Certification:	ISO9001,SGS, ASTM, ASME
Model Number:	0.08mm-10mm or customized thickness

Minimum Order Quantity:	1000Kilogram
Price:	799-1699USD
Packaging Details:	Steel strip + kraft paper + fumigated wooden box export exquisite packaging
Delivery Time:	2-3Days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	800000KG/15Days
