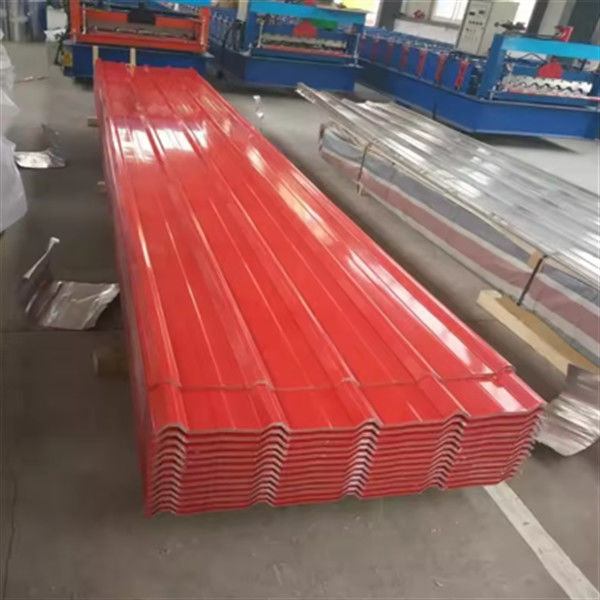

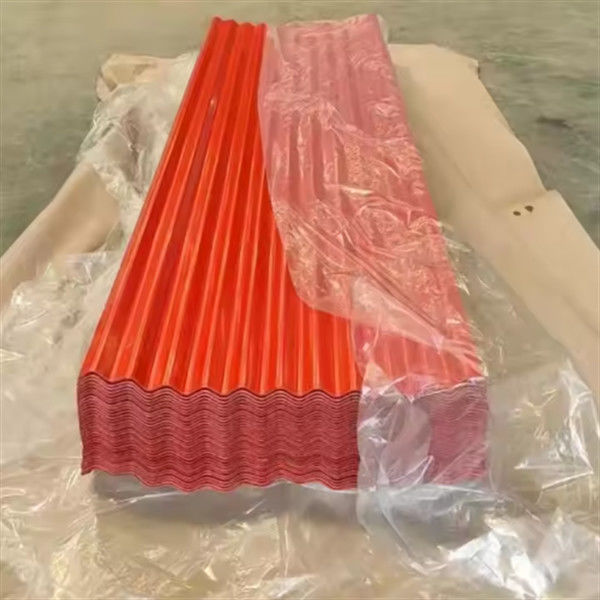

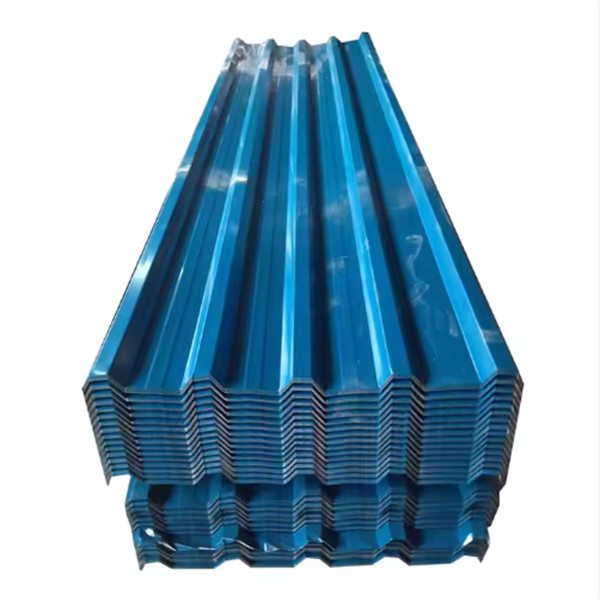

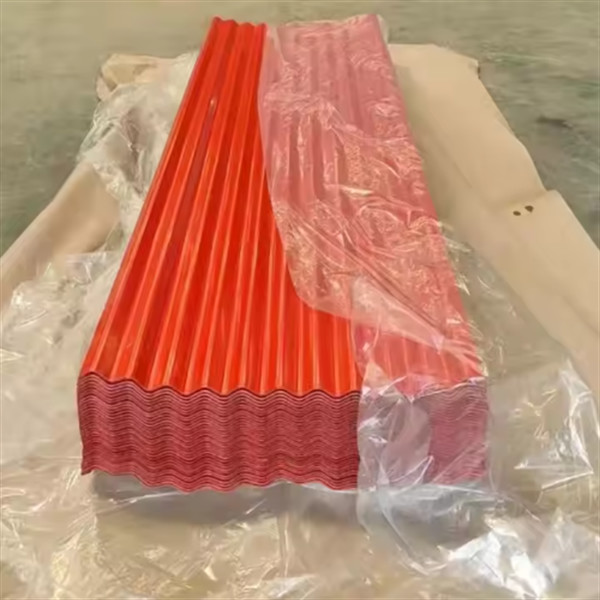

Color Coated PPGI Steel Corrugated Sheets Fire Resistance, 0.4-0.7mm Thickness
Fire-Resistant Color Coated PPGI Steel Corrugated Sheets are engineered for safety-critical applications, combining a fire-retardant coating with vibrant color durability. With a thickness range of 0.4–0.7mm and compliance with ASTM E84 Class A standards, these sheets are ideal for commercial buildings, industrial facilities, and public spaces requiring enhanced fire safety. The zinc-aluminum-magnesium alloy base (ZAM coating) and PVDF/polyester topcoat ensure 1,500+ hours of salt spray resistance and 20+ years of UV stability.
Key Benefits:
- Class A Fire Rating: ASTM E84-certified, limiting flame spread and smoke generation.
- Ultra-Durable Coating: 25–35µm PVDF/polyester layer with anti-scratch and anti-fade properties.
- Lightweight & Strong: Corrugated design enhances rigidity while reducing weight (3–6kg/m²).
- Global Compliance: ASTM E84, EN 13501-1, JIS G3322, and ISO 1461 certified.
- Eco-Friendly: Halogen-free coatings, 80% recycled steel, and REACH/RoHS compliant.
- Aesthetic Versatility: 150+ RAL colors, metallic finishes, or custom textures.
2. Technical Specifications
| Parameter |
Details |
| Base Material |
Zinc-Aluminum-Magnesium Alloy (ZAM: 55% Al, 43% Zn, 2% Mg) + Low-Carbon Steel (C ≤0.08%, Mn ≤0.50%) |
| Coating Structure |
ZAM Layer (150g/m²) + PVDF/Polyester Topcoat (25–35µm) |
| Grades |
ASTM E84 (Class A), EN 13501-1 (B-s1, d0), JIS G3322 (SGH340-FR) |
| Thickness Range |
0.4mm–0.7mm (±0.02mm tolerance) |
| Corrugation Profiles |
Trapezoidal (20–35mm height), V-Rib, or Custom (pitch: 70–150mm) |
| Mechanical Properties |
Tensile Strength: 380–550 MPa, Yield Strength: 280–420 MPa, Elongation: 12–18% |
| Surface Properties |
Gloss: 20–80 GU, roughness Ra ≤0.6µm, pencil hardness ≥2H |
| Certifications |
ASTM E84, EN 13501-1, ISO 1461, TUV Rheinland, LEED, NFPA 285 |
| Key Applications |
Shopping mall roofs, factory cladding, hospital ceilings, and metro stations |
3. Advantages of Importing Our Fire-Resistant PPGI Sheets
Competitive Edge:
- Cost Efficiency: 30% lower than EU/US suppliers with identical ASTM E84 certification.
- Fast Turnaround: 10–14 days lead time for 15-ton orders, including custom colors and profiles.
- Quality Assurance: Third-party tested for fire performance (ASTM E84), adhesion (ISO 2409), and QUV resistance (ΔE ≤3 after 5,000 hours).
- Custom Solutions: Pre-cut lengths (1–6m), perforated designs, or antimicrobial coatings.
- Sustainable Logistics: Recyclable PET film + edge guards to prevent damage during海运.
- Technical Support: Free fire safety reports, BIM models, and installation guidelines.
4. Safety-First Applications
| Industry |
Use Cases |
| Commercial Construction |
Office complexes, retail centers, and hotel façades. |
| Healthcare |
Fire-safe hospital roofing, laboratory ceilings, and pharmacy storage. |
| Transportation Hubs |
Airport terminals, railway stations, and bus shelters. |
| Education |
School auditoriums, university dormitories, and library roofs. |
| Industrial |
Chemical plant cladding, warehouse roofing, and machinery enclosures. |
| Public Safety |
Fire stations, emergency response centers, and government buildings. |
| Renewable Energy |
Solar farm control rooms, wind turbine maintenance shelters. |
FAQ
1. Who are we?
Our headquarters is located in Anhui, China. Since 2010, we have sold to the domestic market (30.00%), South Asia (10.00%), South America (10.00%), North America (10.00%), Southeast Asia (10.00%), and Africa (5.00%) , Northern Europe (5.00%), Central America (5.00%), Middle East (5.00%), Western Europe (3.00%), Oceania (3.00%), Southern Europe (2.00%), East Asia (1.00%), Eastern Europe (1.00%) . There are about 11-50 people in total in our factory.
2. How do we ensure quality?
There are always pre-production samples before mass production;
Always conduct final inspection before shipment;
3. What can you buy from us?
PPGI Steel Sheet, stainless steel pipe, stainless steel coil, stainless steel strip, wear-resistant plate, galvanized steel plate
4. Why should you buy from us instead of other suppliers?
The company introduces advanced technology and equipment, and its products are exported to Western countries such as the United Kingdom and the United States. It has strong technical force and experienced technical and management personnel.
5. What services can we provide?
Accepted delivery terms: FOB, CFR, CIF, EXW;
Accepted payment currencies: USD;
Accepted payment methods: T/T, L/C, cash;
Languages spoken: English, Chinese
