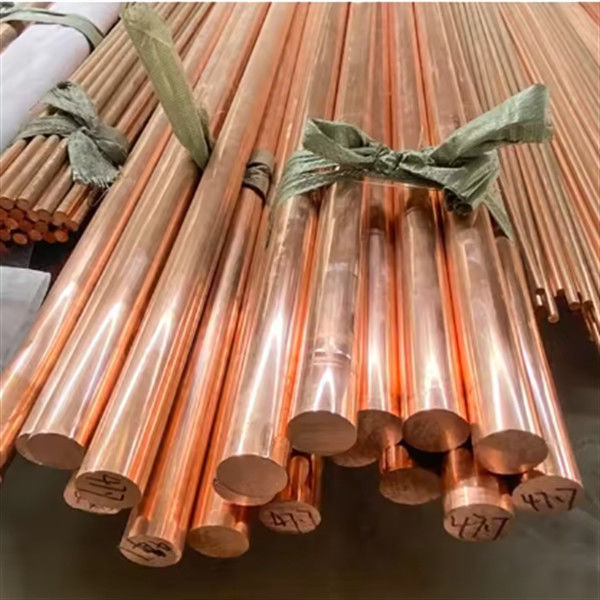

Copper Round Rod With Mill Certificate 2mm-250mm Cold-Drawn Non-Magnetic
Cold-Drawn Non-Magnetic Copper Round Rods are precision-engineered for industries requiring zero magnetic interference, high conductivity, and certified material traceability. Manufactured from C10100 oxygen-free copper (99.99% purity) with diameters from 2mm to 250mm, these rods are ideal for MRI components, semiconductor equipment, and aerospace systems. Each rod includes a mill certificate (EN 10204 3.1) verifying compliance with ASTM B170, EN 13600, and ISO 1337 standards, ensuring reliability for sensitive applications.
Key Advantages:
- Non-Magnetic Properties: Permeability <1.001 μH/m for MRI and quantum computing applications.
- Ultra-Pure Material: Cu ≥99.99%, O ≤0.001%, Fe ≤0.003% for minimal electrical resistance.
- Cold-Drawn Precision: Diameter tolerance ±0.01mm (≤50mm) to ±0.05mm (≥50mm).
- Certified Quality: Mill certificates ensure batch traceability and chemical/mechanical compliance.
- Global Compliance: RoHS, REACH, and ISO 9001/13485 certified for medical/industrial use.
- Custom Solutions: Cut-to-length (100mm–12m), polished (Ra ≤0.2µm), or passivated surfaces.
2. Technical Specifications
| Parameter |
Details |
| Material |
C10100 Oxygen-Free Copper (Cu ≥99.99%, O ≤0.001%, Fe ≤0.003%, Pb ≤0.002%) |
| Standards |
ASTM B170, EN 13600 (CW008A), JIS H3510 (C1011), ISO 1337 |
| Diameter Range |
2mm–250mm (±0.01mm to ±0.05mm) |
| Mechanical Properties |
Tensile Strength: 220–360 MPa, Hardness: 45–95 HV, Elongation: 20–45% |
| Electrical Conductivity |
59.5 MS/m (102% IACS) at 20°C |
| Thermal Conductivity |
391 W/m·K at 20°C |
| Surface Finish |
Cold-drawn (Ra ≤0.8µm), electropolished (Ra ≤0.1µm), or nickel-plated |
| Certifications |
EN 10204 3.1, RoHS, REACH, ISO 9001:2015, ISO 13485 (medical), NADCAP (optional) |
| Key Applications |
MRI magnet coils, particle accelerator components, and semiconductor wafer chucks |
3. Why Import Our Non-Magnetic Copper Rods?
Competitive Benefits:
- Cost Leadership: 25–35% lower pricing than U.S./EU suppliers with identical mill certification.
- Fast Turnaround: 7–10 days for custom orders + air/sea shipping (DAP/DDP terms).
- Zero-Defect Assurance: 100% eddy-current testing + ultrasonic inspection for internal flaws.
- Specialized Customization: Pre-drilled holes, cryogenic treatments, and cleanroom packaging.
- Global Logistics: Pre-stocked in Frankfurt, Singapore, and Los Angeles for 48-hour regional delivery.
- Technical Support: Free material certificates, CAD models, and EMI shielding guidelines.
- Warranty: 10-year material integrity guarantee + 90-day returns for non-compliance.
4. High-Tech Industry Applications
| Industry |
Use Cases |
| Medical Imaging |
MRI scanner coils, CT gantry components, and radiotherapy targeting systems. |
| Semiconductor |
EUV lithography stages, vacuum chamber feedthroughs, and wafer handling arms. |
| Quantum Computing |
Qubit cooling rods, superconducting circuit mounts, and cryogenic sensor housings. |
| Aerospace & Defense |
Satellite magnetorquers, avionics shielding, and missile guidance systems. |
| Energy Research |
Fusion reactor diagnostic probes, synchrotron radiation shields. |
| Telecommunications |
5G/6G antenna waveguides, fiber-optic amplifier housings. |
| Industrial Automation |
Non-magnetic robotic arms, CNC machine spindles, and laser alignment tools. |
FAQ
1. Who are we?
Our headquarters is located in Jiangsu, China. Since 2010, we have sold to the domestic market (30.00%), North America (10.00%), South America (10.00%), Southeast Asia (10.00%), South Asia (10.00%), and Africa (5.00%) , Middle East (5.00%), Central America (5.00%), Northern Europe (5.00%), Oceania (3.00%), Western Europe (3.00%), Southern Europe (2.00%), Eastern Europe (00.00%), East Asia (00.00%) . There are approximately 11-50 people in our office in total.
2. How do we ensure quality?
There are always pre-production samples before mass production;
Always conduct final inspection before shipment;
3. What can you buy from us?
Copper Round Rod, stainless steel pipe, stainless steel coil, stainless steel strip, wear-resistant plate, galvanized steel plate
4. Why should you buy from us instead of other suppliers?
The company introduces advanced technology and equipment, and its products are exported to Western countries such as the United Kingdom and the United States. It has strong technical force and experienced technical and management personnel.
5. What services can we provide?
Accepted delivery terms: FOB, CFR, CIF, EXW;
Accepted payment currencies: USD;
Accepted payment methods: T/T, L/C, cash;
Languages spoken: English, Chinese
